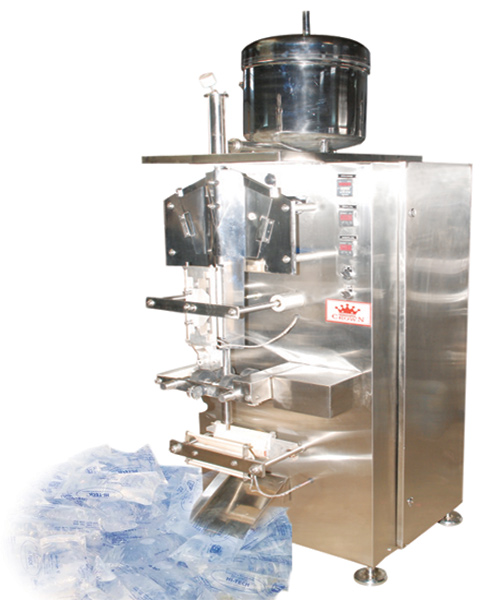

WATER PACKING MACHINE HIGH SPEED (MODEL: CR-L-500 60PPM)

Product Stock Quantity

- +

MODEL: CR-L-500(HIGH SPEED): Single head automatic mechanically operated vertical pouch form, fill & seal machine to pack ‘Mineral Water’ Juices etc. with continuous gravity flow Filling System. With Ribbon Batch coding and Solenoid Coil/Valve.

FEEDING HEAD :	Continuous Gravity Flow with Solenoid Valve Control System
PACKING RANGE :	100 Ml - 500ml
PRODUCTION SPEED :	60-62 Pouches per Minute
MACHINE CONTROL SYSTEM :	Electrical Controls
FILM WIDTH :	325 Mm/240mm/225mm
FILM THICKNESS :	40 - 100 Microns
FILM MATERIAL :	Co-Extruded Virgin Films (LD)
SEALER HEATING SYSTEM :	PID Controlled Heating System
FILLING ACCURACY :	+/- 1%
INNER CORE DIA. OF FILM ROLL :	70mm
OUTER DIA. OF THE FILM ROLL :	Up To 350mm
POUCH STYLE :	Center Sealed Pillow Type
POUCH WIDTH :	150mm/110mm
POUCH LENGTH :	Up To 175mm
COMPRESSED AIR PRESSURE :	N/A
AIR CONSUMPTION :	N/A
POWER CONSUMPTION :	1.5 KW/Hour
PEAK POWER :	3 KW
POWER REQUIREMENT :	Single Phase, 220 VAC, 50Hz
FILM GUARD MECHANISM :	N/A
POUCH COUNTER :	N/A
DATE PRINTING DEVICE :	with in 1 week after advance payment received.
PHOTO CELL :	N/A
MACHINE DIMENSIONS IN ‘MM’ :	1500(H) X 700(W) X 920(Depth)
NET WEIGHT :	300 KG (Approx)

FEEDING HEAD :	Continuous Gravity Flow with Solenoid Valve Control System
PACKING RANGE :	100 Ml - 500ml
PRODUCTION SPEED :	60-62 Pouches per Minute
MACHINE CONTROL SYSTEM :	Electrical Controls
FILM WIDTH :	325 Mm/240mm/225mm
FILM THICKNESS :	40 - 100 Microns
FILM MATERIAL :	Co-Extruded Virgin Films (LD)
SEALER HEATING SYSTEM :	PID Controlled Heating System
FILLING ACCURACY :	+/- 1%F
INNER CORE DIA. OF FILM ROLL :	70mm
OUTER DIA. OF THE FILM ROLL :	Up To 350mm
POUCH STYLE :	Center Sealed Pillow Type
POUCH WIDTH :	150mm/110mm
POUCH LENGTH :	Up To 175mm
POWER CONSUMPTION :	1.5 KW/Hour
PEAK POWER :	3 KW
POWER REQUIREMENT :	Single Phase, 220 VAC, 50Hz
FILM GUARD MECHANISM :	N/A
DATE PRINTING DEVICE :	with in 1 week after advance payment received.
MACHINE DIMENSIONS IN ‘MM’ :	1500(H) X 700(W) X 920(Depth)
NET WEIGHT :	300 KG (Approx)
