MILK / BUTTER MILK PACKING MACHINES
SINGLE HEAD MILK ECONOMIC (MODEL: CR-L-500 SELF PUMP MILK)
Product Stock Quantity

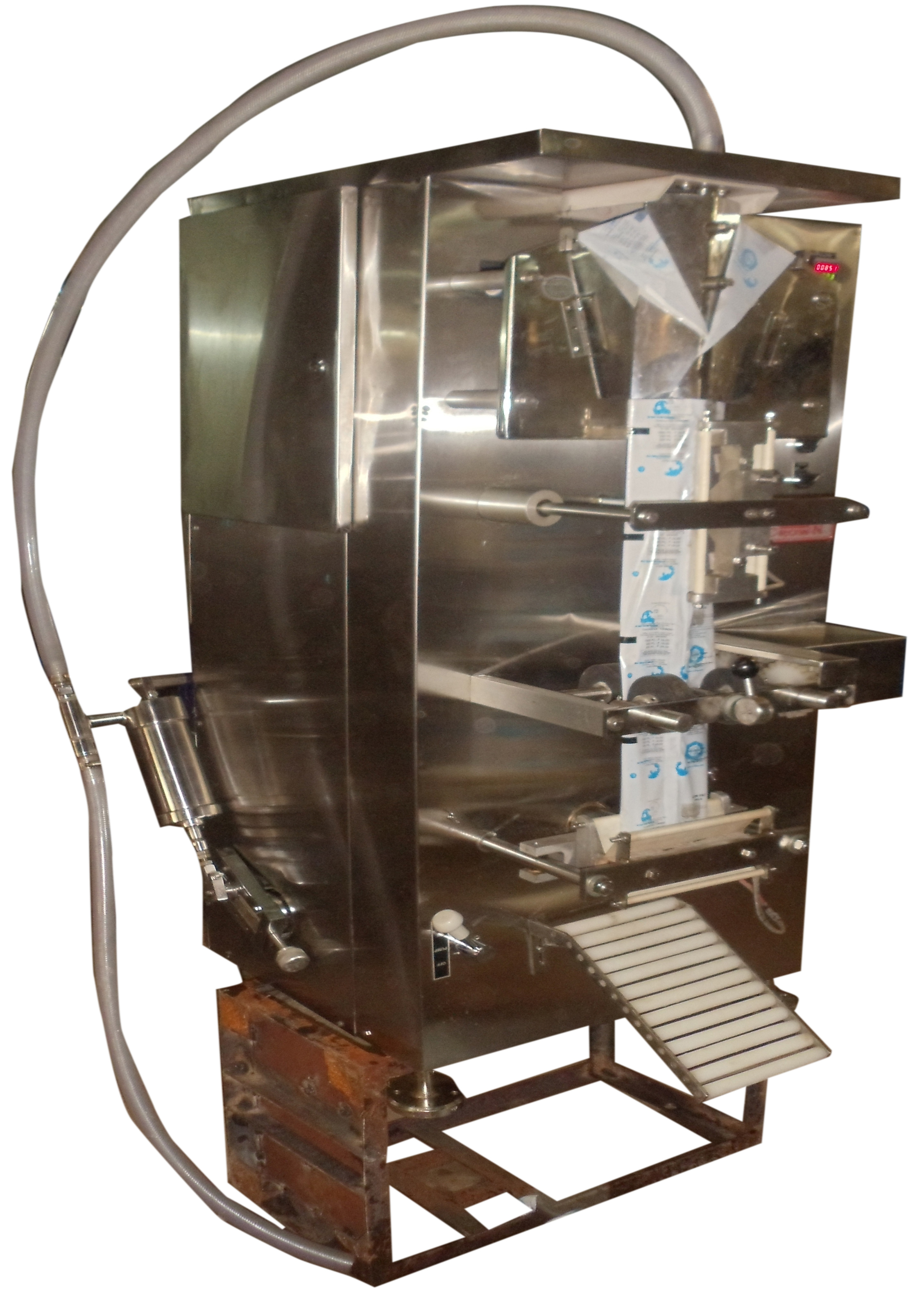

SINGLE HEAD MILK ECONOMIC MODEL CR-L-500 Fully automatic Single Head Open body milk pouch packing machine with self priming pump filling system. Optional Attachments @ extra cost 1. UV lamp 2. Batch Code 3. Cooling Pump 4. Stabilizer
| FEEDING HEAD : | Self Priming Volumetric Piston Pump System |
| PACKING RANGE : | 100ml to 500ml |
| PRODUCTION SPEED : | 28 to 30 pouches per minute |
| MACHINE CONTROL SYSTEM : | PLC controlled |
| FILM WIDTH : | 325 mm.(Rectangular shape) |
| FILM THICKNESS : | 60 to 80 microns |
| FILM MATERIAL : | Co-Extruded Virgin films |
| SEALER HEATING SYSTEM : | Impulse |
| FILLING ACCURACY : | +/- 2ml |
| INNER CORE DIA. OF FILM ROLL : | 70mm |
| OUTER DIA. OF THE FILM ROLL : | up to 350mm |
| POUCH STYLE : | Center sealed Pillow type |
| POUCH WIDTH : | 150mm |
| POUCH LENGTH : | up to 190mm |
| COMPRESSED AIR PRESSURE : | N/A |
| AIR CONSUMPTION : | N/A |
| POWER CONSUMPTION : | 3 KW/Hour |
| PEAK POWER : | 5 kW |
| POWER REQUIREMENT : | Single Phase, 220 V, 50Hz |
| FILM GUARD MECHANISM : | N/A |
| POUCH COUNTER : | Provided |
| DATE PRINTING DEVICE : | 2-3 weeks from the date of receipt of you’re confirm order and along with requisite advances. |
| PHOTO CELL : | Inclusive |
| MACHINE DIMENSIONS IN ‘MM’ : | 1700(H) x 800(W) x 1200(Depth) |
| NET WEIGHT : | 400 Kgs (approx) |
| Demo Video | <iframe width="560" height="315" src="https://www.youtube.com/embed/3YhMN3wLyX0" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe> |
